GS300 Steel wire coil wrapping machine

Coil wrapping machine for light coil packing
Coil wrapping machine for light coil packing

Posted By: wrapping July 10, 2015

Purpose: This versatile machine is designed to encase wire coils with protective materials such as stretch film, paper, or knit tape. This essential wrapping process guards the wire against environmental hazards like dust and water, as well as preventing rust. It also acts as a safeguard against physical damage from impacts, collisions, or other mishaps during handling. Once wrapped, the wire coils present a clean and orderly appearance, making them more manageable for transportation and storage. The machine is adaptable, capable of accommodating a wide range of coil specifications.

Benefit: The implementation of this wrapping machine significantly decreases manual labor intensity. By automating the protection of wire coils, it not only conserves workforce energy but also substantially improves production efficiency. This machine is a valuable asset in any setting that requires the regular packaging of wire coils, streamlining the process and ensuring each coil is uniformly protected and ready for the next stage in its distribution.

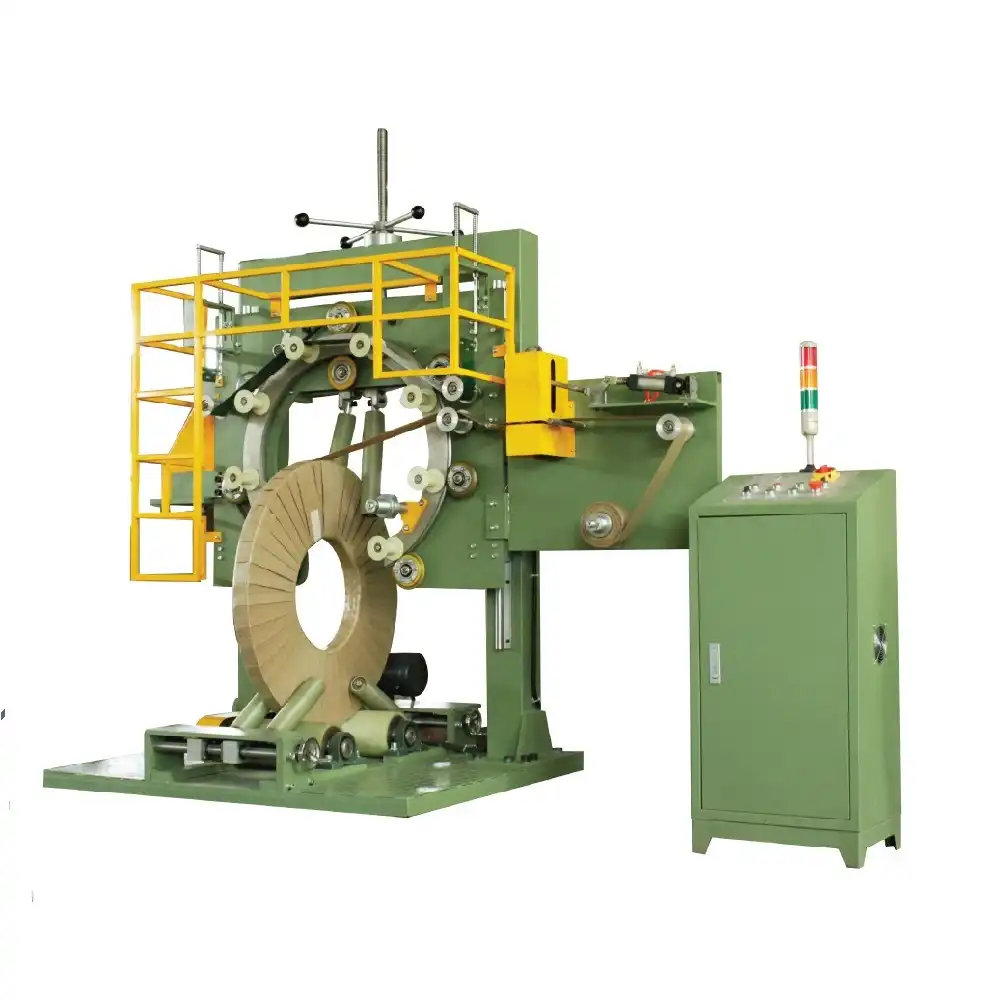

coil wrapping machine

This advanced wrapping machine boasts an array of impressive features designed to enhance efficiency and safety in coil packaging:

  1. Premium Components: We use only high-quality, renowned brands for our main components, ensuring exceptional performance.

  2. Adjustable Material Overlap: Tailor the overlap of packing materials to your needs with a converter.

  3. Versatile Ring Height: The level height of the wrapping ring is adjustable, accommodating various coil sizes.

  4. Customizable Tension: Fine-tune the tension of the packing material for optimal protection.

  5. Material Flexibility: Choose from different packing materials to meet specific requirements.

  6. Coil Stabilization: Up and down supporting rollers are in place to firmly secure the coils during wrapping.

  7. Durable Rollers: The supporting rollers are coated with polyurethane to extend their working life.

  8. Independent Electrical Box: Features a separate electrical box for secure operations, as well as easier technical diagnostics and troubleshooting.

  9. Safety Guardrails: Equipped with guardrails to ensure operator safety during the machine’s operation.

  10. Smooth Operation: Soft start and stop functions to enhance safety and control during use.

  11. Automatic Position Reset: The machine automatically resets the packing position for consistent wrapping.

  12. Speed Control: Both ring and roller speeds can be finely adjusted via a converter.

  13. Adjustable Friction: Control the friction between the wheel and the ring for precise operation.

  14. PU Wheel: Incorporates a polyurethane wheel for increased longevity and reduced wear.

  15. Dual Material Wrapping: Capable of simultaneously wrapping with two different materials for added efficiency.

  16. Reinforced Design: The machine’s ring and structure are reinforced, ensuring stability and long-term durability for continuous industrial use.



ITEMS GS300 Steel wire coil wrapping machine
Coil weight ≤500kg
Coil width ≤300mm
Coil OD 500-1000mm
Coil ID ≥300mm
Roller speed 2-4m/min
Ring speed 30-80r/min
Suitable material stretch film, Knit tape, paper tape etc.
Material width 100-150mm
Material OD 150mm
Material ID 54mm
Power output About 3.0kw
Power voltage 380V, 3phase 5wirel
